Model STLC: Load Shackle Load Cell

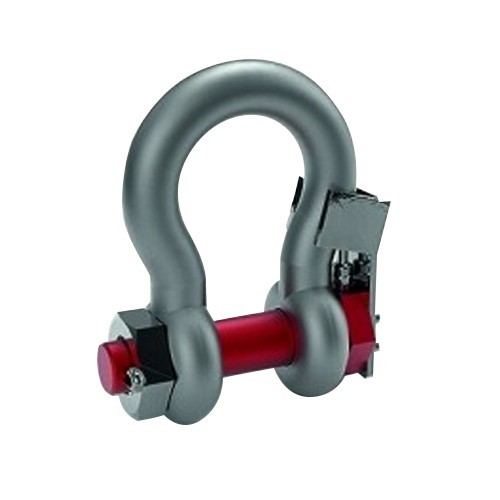

The STLC load shackle load cells are designed to take the place of a standard bow shackle. We start with a Crosby™ shackle G2130 (1 to 25te) or G2140 (40 to 400te) and manufacture a custom stainless steel load pin load cell to fit the shackle. A centralizing bobbin (shown on the drawing in the brochure) is optional for applications in which the load applied to the load pin isn't centered or evenly loading the pin. The STLC load shackle is sealed to IP67 making it suitable for harsh environments, featuring a 10 meter integral cable; optionally a connector can be added to the load cell and the mating connector is supplied with a 10 meter cable (cable length can be altered at the time of order).

The load shackle can be optioned with internal electronics to give a 0-5V, 0-10V, 4-20mA, RS232, or RS485 output. A wireless load shackle is also available; for details see the model WL-STLC.

Capacities

(tonne) 1, 2, 3.25, 4.75, 6.5, 9.5, 12, 17, 25, 40, 55, 85, 120, 150, 200, 300, 400

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
STLC-1t	1,000 kg	Load Shackle Load Cell	Call for Lead Time	$1,780.00	Quantity
STLC-2t	2,000 kg	Load Shackle Load Cell	Call for Lead Time	$1,780.00	Quantity
STLC-3.25t	3,250 kg	Load Shackle Load Cell	7 available	$1,780.00	Quantity
STLC-4.75t	4,750 kg	Load Shackle Load Cell	Call for Lead Time	$1,780.00	Quantity
STLC-6.5t	6,500 kg	Load Shackle Load Cell	Call for Lead Time	$1,890.00	Quantity
STLC-9.5t	9,500 kg	Load Shackle Load Cell	Call for Lead Time	$1,875.00	Quantity
STLC-12t	12,000 kg	Load Shackle Load Cell	Call for Lead Time	$2,135.00	Quantity
STLC-17t	17,000 kg	Load Shackle Load Cell	Call for Lead Time	$2,675.00	Quantity
STLC-25t	25,000 kg	Load Shackle Load Cell	Call for Lead Time	$2,730.00	Quantity
STLC-40t	40,000 kg	Load Shackle Load Cell	Call for Lead Time	$3,300.00	Quantity
STLC-55t	55,000 kg	Load Shackle Load Cell	Call for Lead Time	$4,095.00	Quantity
STLC-85t	85,000 kg	Load Shackle Load Cell	Call for Lead Time	$4,790.00	Quantity
Additional Options
Part No.		Description	Status	Price	Qty.
CB-STLC-1t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$135.00	Quantity
CB-STLC-2t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$135.00	Quantity
CB-STLC-3.25t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$135.00	Quantity
CB-STLC-4.75t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$135.00	Quantity
CB-STLC-6.5t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	2 available	$135.00	Quantity
CB-STLC-9.5t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$215.00	Quantity
CB-STLC-12t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	1 available	$195.00	Quantity
CB-STLC-17t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$240.00	Quantity
CB-STLC-25t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$285.00	Quantity
CB-STLC-40t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$285.00	Quantity
CB-STLC-55t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$380.00	Quantity
CB-STLC-85t		Centralising Bobbin to Distribute Load Evenly on Shackle Pin	Call for Lead Time	$510.00	Quantity

Brochures

• STLC Brochure 348kb

Features

• Combined error <±1% of full scale (typically)
• Compensated temp. -10 to 50ºC
• Safe overload 150% of full scale
• Ultimate overload 300% of full scale
• Integral 10 meter load cell cable

Options

• Centralizing load bobbin
• Wireless load shackle
• Submersible load shackle
• Internal electronics for 0-5V, 0-10V, 4-20mA, RS232, or RS485 output
• Custom cable length
• Connector & mating connector
• Pelican® carry case
