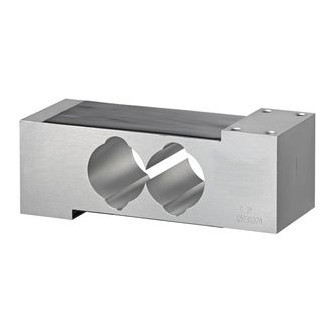

Model KCBH2: High Capacity Single Point Load Cell

Load Cell Central's KCBH2 single point load cells are designed for use in commercial platform scales and precision weighing machines, such as bagging machinery, conveyor scales and medical scales with capacities from 100kg to 1,000kg. The KCBH2 is constructed of anodized aluminum, is moment compensated, and environmentally sealed up to IP65 against moisture and humidity. Recommended maximum platform size : 60cm X 60cm / 24" X 24"

* The "off-center" or moment compensation feature allows for support by a single load cell at the center of the platform. Up to the specified platform size limit, the cell will weigh within stated accuracy specifications independent of where the load is positioned on the platform.

Direct Interchange for the 1250 and 642 load cells

Capacities

(kg) 100, 150, 250, 300, 500, 635, 800, 1K

Brochures

• KCBH2 Brochure602kb

Specifications

Ouput:

2mV/V ±10%

Combined Error:

0.02%

Non-Repeatability:

0.01%

Creep (30 minutes):

0.02%

Zero Return (20 minutes):

0.03%

Thermal Sensitivity Shift:

0.014/10°C

Thermal Zero Shift:

0.017/10°C

Compensated Temperature Range:

-10° to 40°C

Operating Temperature Range:

-35° to 65°C

Zero Balance:

±2% R.O.

Input Resistance:

409 ±6 Ohm

Output Resistance:

350 ±3 Ohm

Recommended Excitation:

10 Volts

Insulation Resistance (50 VDC):

>5000 Megohm

Safe Overload:

150%

Ultimate Overload:

300%

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
KCBH-50kg	50 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH-75kg	75 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH-100kg	100 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$315.00	Quantity
KCBH-150kg	150 kg	High Capacity Platform Load Cell with M8 Threads	3 available	$340.00	Quantity
KCBH-200kg	200 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$315.00	Quantity
KCBH-250kg	250 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH-300kg	300 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH-500kg	500 kg	High Capacity Platform Load Cell with M8 Threads	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH-635kg	635 kg	High Capacity Platform Load Cell with M8 Threads	Typical Lead Time: 1-2 Weeks	$315.00	Quantity
KCBH-1000kg	1,000 kg	High Capacity Platform Load Cell with M8 Threads	Typical Lead Time: 1-2 Weeks	$315.00	Quantity
KCHB2-100lb	100 lb	High Capacity Platform Load Cell with 5/16	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH2-250lb	250 lb	High Capacity Platform Load Cell with 5/16	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH2-500lb	500 lb	High Capacity Platform Load Cell with 5/16	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
KCBH2-700lb	700 lb	High Capacity Platform Load Cell with 5/16	Typical Lead Time: 1-2 Weeks	$315.00	Quantity
KCBH2-1000lb	1,000 lb	High Capacity Platform Load Cell with 5/16	Out of Stock — Typical Lead Time: 1-2 Weeks	$340.00	Quantity
