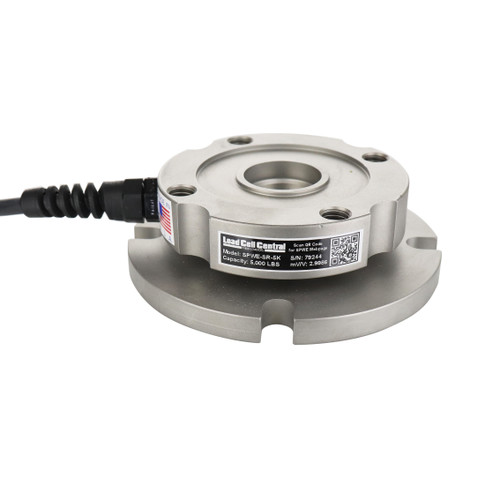

Model SPWE: Low-Profile Vessel Weighing Load Cell

The SPWE low-profile load cell assembly from Load Cell Central is designed as an alternative to traditional single and double-ended shear beam load cells and mounts. Considerably smaller, it is easier to install, less headroom is lost, and it weighs accurately with up to 3° off-axis load. Manufactured from 17-4 stainless steel* with a welded seal, this vessel weighing load cell assembly is well suited to outdoor and corrosive environments.

• The standard base plate for 150K-450K is square and painted alloy steel.

Capacities

(lb) 1K, 2.5K, 5K, 10K, 15K, 20K, 25K, 35K, 50K, 60K, 75K, 100K, 125K, 150K, 200K, 225K, 250K, 350K, 450K

Features

• Low profile 1.3" for 1-10K lb to 4.75" for 225K lb
• Compact, the SPWE load cells weigh up to 30% less than traditional assemblies
• Fully welded, stainless steel construction
• 100% side and upload restraint
• 150% overload protection and 300% ultimate overload
• 3-degree non-parallel accommodation
• Simple design reduces installation errors
• Round design allows easy cleaning and less debris accumulation

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
SPWE-SR-1K	1,000 lb	Low Profile Vessel Weighing Load Cell, with Strain Relief at Cable Exit	3 available	$670.00	Quantity
SPWE-SR-2.5K	2,500 lb	Low Profile Vessel Weighing Load Cell, with Strain Relief at Cable Exit	Call for Lead Time	$670.00	Quantity
SPWE-SR-5K	5,000 lb	Low Profile Vessel Weighing Load Cell, with Strain Relief at Cable Exit	2 available	$670.00	Quantity
SPWE-SR-10K	10,000 lb	Low Profile Vessel Weighing Load Cell, with Strain Relief at Cable Exit	2 available	$670.00	Quantity
SPWE-SR-15K	15,000 lb	Low Profile Vessel Weighing Load Cell, with Strain Relief at Cable Exit	Call for Lead Time	$695.00	Quantity
SPWE-CA-20K	20,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$1,290.00	Quantity
SPWE-CA-25K	25,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	8 available	$1,290.00	Quantity
SPWE-CA-35K	35,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$1,290.00	Quantity
SPWE-CA-50K	50,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	11 available	$1,290.00	Quantity
SPWE-CA-60K	60,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$2,255.00	Quantity
SPWE-CA-75K	75,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$2,255.00	Quantity
SPWE-CA-100K	100,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$2,255.00	Quantity
SPWE-CA-125K	125,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit	Call for Lead Time	$2,410.00	Quantity
SPWE-CA-150K	150,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base	Call for Lead Time	$3,880.00	Quantity
SPWE-CA-200K	200,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base	Call for Lead Time	$4,580.00	Quantity
SPWE-CA-225K	225,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base	Call for Lead Time	$3,880.00	Quantity
SPWE-CA-250K	250,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base	Call for Lead Time	$6,830.00	Quantity
SPWE-CA-350K	350,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base		$6,199.00	Quantity
SPWE-CA-450K	450,000 lb	Low Profile Vessel Weighing Load Cell, with Conduit Adaptor at Cable Exit, Alloy Steel Base		$6,199.00	Quantity

Brochures



• SPWE Brochure 727kb
• SPWE Installation Guide 705kb



Comparison

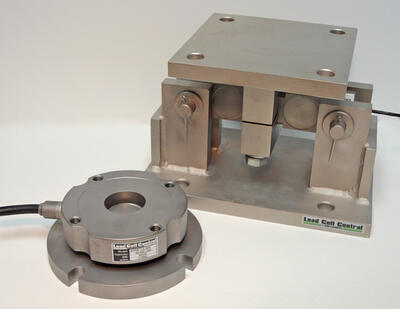

Example showing the integrated load cell and mount SPWE compared to the traditional double ended beam DES7 load cell and mounting assembly Duramount 7-S3.  Each design has its unique advantages.

Call Load Cell Central for expert advice when designing your weighing system.
