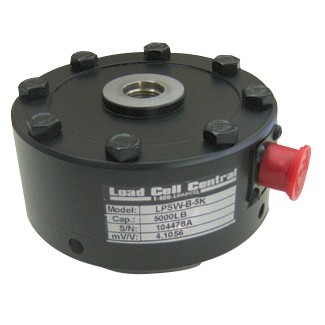

Model LPSW-B: Universal Load Cell

Load Cell Central's universal shear web precision load cell model LPSW-B is ideal for structural and materials testing, and force measurement applications. The design helps resist errors caused by extraneous bending and side loads. Standard output is 4 mV/V for most capacities (for example, 40 millivolts full scale with 10V excitation). You may choose from a number of our load cell digital indicators or load cell amplifiers to be used with this force transducer.

See the brochure for a full list of electrical specifications and dimensions.

Capacities

300, 500, 1K, 2K, 5K, 10K, 25K, 50K, 100K lbs.

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
LPSW-B-300	300 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$955.00	Quantity
LPSW-B-500	500 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$1,020.00	Quantity
LPSW-B-1K	1,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$885.00	Quantity
LPSW-B-2K	2,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$890.00	Quantity
LPSW-B-5K	5,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$1,075.00	Quantity
LPSW-B-10K	10,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$1,075.00	Quantity
LPSW-B-25K	25,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$1,695.00	Quantity
LPSW-B-50K	50,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$1,695.00	Quantity
LPSW-B-100K	100,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$3,360.00	Quantity
LPSW-B-200K	200,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$5,525.00	Quantity
LPSW-B-270K	270,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$6,090.00	Quantity
LPSW-B-300K	300,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate		$10,035.00	Quantity
LPSW-B-400K	400,000 lb	Universal Tension & Compression Shear Web Load Cell with Base Plate	Call for Lead Time	$10,495.00	Quantity
LPSW-300	300 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$785.00	Quantity
LPSW-500	500 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$785.00	Quantity
LPSW-1K	1,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$670.00	Quantity
LPSW-2K	2,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$670.00	Quantity
LPSW-5K	5,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$820.00	Quantity
LPSW-10K	10,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$820.00	Quantity
LPSW-25K	25,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$1,435.00	Quantity
LPSW-50K	50,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$1,220.00	Quantity
LPSW-100K	100,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$2,780.00	Quantity
LPSW-200K	200,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$4,060.00	Quantity
LPSW-270K	270,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$4,170.00	Quantity
LPSW-300K	300,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$8,400.00	Quantity
LPSW-400K	400,000 lb	Universal Tension & Compression Shear Web Load Cell (No Base Plate)	Call for Lead Time	$8,400.00	Quantity
Additional Options
Part No.		Description	Status	Price	Qty.
CA-01-01-005-4		5' Load Cell Cable Assembly	Call for Lead Time	$70.00	Quantity
CA-01-01-010-4		10' Load Cell Cable Assembly	Call for Lead Time	$81.00	Quantity
CA-01-01-015-4		15' Load Cell Cable Assembly	7 available	$90.00	Quantity
CA-01-01-020-4		20' Load Cell Cable Assembly	Call for Lead Time	$102.00	Quantity
CA-01-01-030-4		30' Load Cell Cable Assembly	Call for Lead Time	$125.00	Quantity
CA-01-01-040-4		40' Load Cell Cable Assembly	Call for Lead Time	$145.00	Quantity
CA-01-01-050-4		50' Load Cell Cable Assembly	Call for Lead Time	$170.00	Quantity

Brochures

• LPSW-B Brochure 363kb



Options

• Mating Connector & Cable Assembly
• Internal Overload Protection
• Integral Cable
• Customer Specified Connector
• Additional Bridges
• Shunt Calibration Resistor
• Matched Outputs
• Digital Indicator / Load Cell Conditioner
