XBD: Button Load Cell

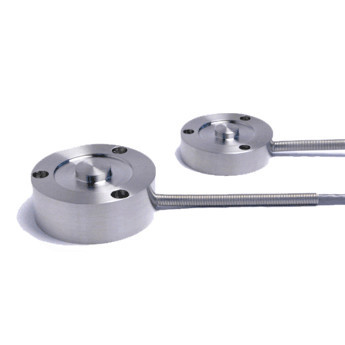

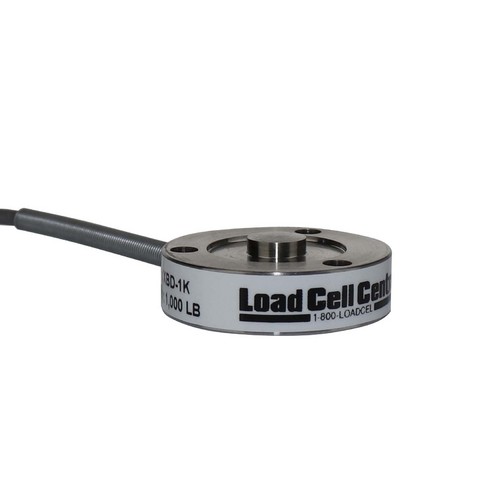

The XBD miniature compression-only button force sensor load cells are bonded foil strain gage transducers designed for low-cost production and testing applications (e.g. press calibration).

Capacities

100, 250, 500, 750, 1K, 2K, 3K, 5K, 10K, 15K, 20K, 30K, 50K lbs.

Brochures

XBD Brochure

Reviews

There are no reviews yet for this product. Write a Review

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
XBD-100	100 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-250	250 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-500	500 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-750	750 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-1K	1,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-2K	2,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$620.00	Quantity
XBD-3K	3,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$715.00	Quantity
XBD-5K	5,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$715.00	Quantity
XBD-10K	10,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$715.00	Quantity
XBD-15K	15,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$805.00	Quantity
XBD-20K	20,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$805.00	Quantity
XBD-30K	30,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$805.00	Quantity
XBD-50K	50,000 lb	Miniature Button Load Cell	Out of Stock — Typical Lead Time: 1 Week	$990.00	Quantity

Engineered for compression force measurements up to 50,000 lbs., this model achieves a maximum non-linearity of 0.25% full scale. Precision gaging techniques and stainless steel construction provide excellent long-term stability and reliability under severe operating conditions. The XBD miniature compression-only button load cell has an integral load button machined as part of the load cell. The model XBD must be mounted on a machined flat surface for proper operation. Three thru-holes are provided for mounting.

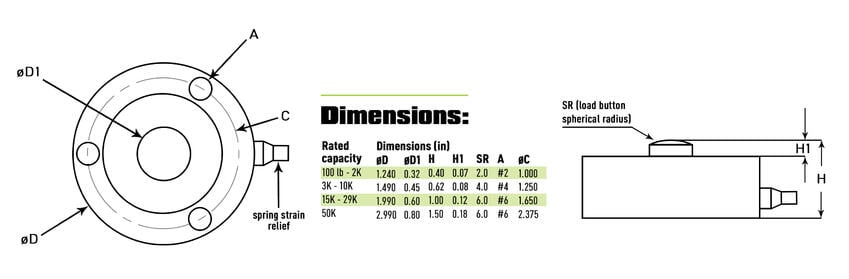

xbd load cell diagram and dimensions
