Model PSCG: Canister Load Cell - Stainless Steel

When it comes to versatility and strength, canister load cells are the answer for a wide variety of industrial and technical weighing applications. Canister type load cell models can be designed for use in compression, tension or universal applications. They range from very light compression force measurements up to 500,000 pounds of force or more.

Models come in miniature dimensions for use in restrictive spaces. They are also exceptional choices for portable applications, and are typically used in a variety of single and multi-weighing capacities. Canister load cells are often constructed with stainless steel exteriors for enhanced durability. They can also be hermetically sealed for outdoor, all-weather use in environments such as truck and track scales, tanks, hoppers and silos.

Capacities

(lb) 10K, 25K, 50K, 100K, 200K

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
PSCG-10K	10,000 lb	Canister Load Cell	Out of Stock — Typical Lead Time: 2-3 Weeks	$1,055.00	Quantity
PSCG-25K	25,000 lb	Canister Load Cell	1 available	$1,055.00	Quantity
PSCG-50K	50,000 lb	Canister Load Cell	2 available	$1,055.00	Quantity
PSCG-100K	100,000 lb	Canister Load Cell	3 available	$1,395.00	Quantity
PSCG-200K	200,000 lb	Canister Load Cell	Out of Stock — Typical Lead Time: 8-10 Weeks	$1,715.00	Quantity
PSCG-300K	300,000 lb	Canister Load Cell	Out of Stock — Typical Lead Time: 8-10 Weeks	$1,715.00	Quantity
PSCG-500K	500,000 lb	Canister Load Cell	Out of Stock — Typical Lead Time: 12-14 Weeks	$2,945.00	Quantity

Brochures

• PSCG Brochure
•

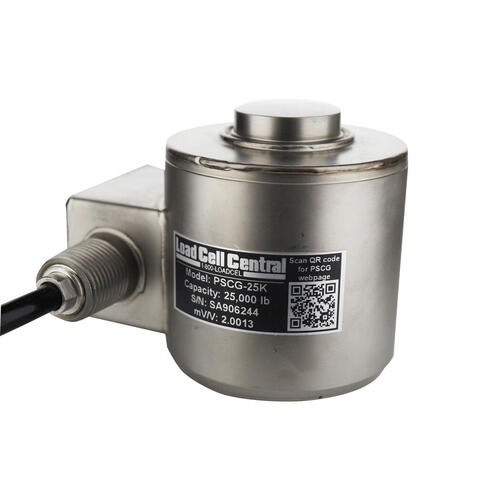

The model PSCG is a hermetically sealed, stainless steel compression type canister load cell. Its linearity, rugged design, and resistance to off-axis loading errors, make it ideal for harsh industrial and outdoor environments such as truck and track scales, tanks, hoppers, and silos. Bolt-in-place mounting assemblies -- both custom and off-the-shelf -- are available from LOAD CELL CENTRAL.

PSCG interchangeable with Revere Transducers RTI CSP

Specifications

PSCG Output: 2.00mV/V

Total Error:

0.05% FS

Non-Repeatability:

0.01%

Creep 30 minutes:

0.02%

Input Resistance:

450 Ohms ± 5

Output Resistance:

480 Ohms ± 5

Compensated Temp. Range:

-10 - 40°C
