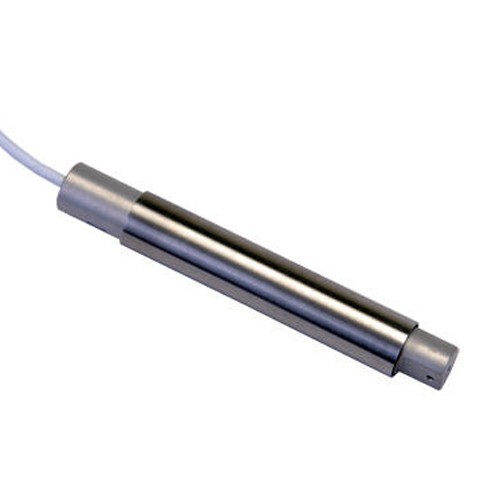

Model SLCB & LCBF - Mini-Gram Beam Load Cell: Mini-gram Beam Load Cell

Load Cell Central's beam type gram load cell models SLCB and LCBF are engineered to measure very low bending forces and still achieve an impressive 0.1% full scale non-linearity and hysteresis. Built-in overload stops are incorporated to provide additional reliability. Miniature dimensions allow easy unit integration into existing systems. Model SLCB uses semiconductor gages and is available for load ranges from 25 to 1000 grams. Model LCBF uses foil gages and is available for load ranges from 150 grams to 10 lbs. Both models are built with a standard 5' cable; custom lengths are available.

Capacities

SLCB

25, 50, 100, 150, 250, 500, 1000 grams

LCBF

150, 250, 500, 1000 grams / 5, 10 lbs.

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
SLCB-25g	25 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$821.00	Quantity
SLCB-50g	50 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$821.00	Quantity
SLCB-100g	100 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$821.00	Quantity
SLCB-150g	150 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$720.00	Quantity
SLCB-250g	250 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$720.00	Quantity
SLCB-500g	500 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$720.00	Quantity
SLCB-1kg	1,000 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$720.00	Quantity
LCBF-150g	150 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity
LCBF-250g	250 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity
LCBF-500g	500 g	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity
LCBF-1lb	1 lb	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity
LCBF-5lb	5 lb	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity
LCBF-10lb	10 lb	Gram Load Cell Sensor, Output 2mV/V	Typical Lead Time: 10-12 Weeks	$645.00	Quantity



Specifications:	LCC-SLCB	LCC-LCBF
Non-Linearity and Hysteresis (max)	±0.1% F.S.	±0.1% F.S.
Non-Repeatability (max)	±0.03% F.S.	±0.03% F.S.
Output	20mV/V	2mV/V
Strain Gage Type	Bonded semiconductor	Bonded foil
Excitation	5VDC	5VDC
Bridge Resistance	500 ohms	350 ohms
Operating Temperature	0° F to 160° F	0° F to 160° F
Compensated Temperature	60° F to 160° F	60° F to 160° F
Temperature Effect on Zero (max)	0.005% F.S./° F	0.005% F.S./° F
Temperature Effect on Span (max)	0.005% F.S./° F	0.005% F.S./° F
Safe Overload	400% over rated capacity	400% over rated capacity or 20 lbs. whichever is less
