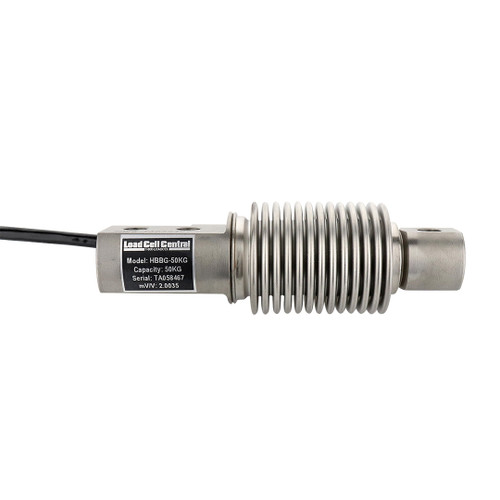

Model HBBG: Stainless Steel Load Cell Hermetically Sealed

The HBBG load cell is designed for harsh industrial applications such as food, chemical, & pharmaceutical industries. The strain gage area and electronic components are covered by the stainless steel bellows to provide an IP68 protection class rating.

When used with the Duramount 31 weighing assembly the HBBG is ideal for low capacity belt scales and hopper scales.

Standard output is 2 mV/V (for example, 20 millivolts full scale with 10V excitation), making it compatible with a wide variety of signal conditioners (for interface with a PC, PLC, or data recorder) and with standard strain gage digital displays.

Brochures

• HBBG Brochure 279kb

Capacities

20, 30, 50, 100, 200, 350, & 500 KG

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
HBBG-20kg	20 kg	Stainless Steel Beam Load Cell	8 available	$320.00	Quantity
HBBG-30kg	30 kg	Stainless Steel Beam Load Cell	8 available	$320.00	Quantity
HBBG-50kg	50 kg	Stainless Steel Beam Load Cell	Call for Lead Time	$320.00	Quantity
HBBG-100kg	100 kg	Stainless Steel Beam Load Cell	Call for Lead Time	$320.00	Quantity
HBBG-200kg	200 kg	Stainless Steel Beam Load Cell	5 available	$320.00	Quantity
HBBG-350kg	350 kg	Stainless Steel Beam Load Cell	32 available	$320.00	Quantity
HBBG-500kg	500 kg	Stainless Steel Beam Load Cell	16 available	$320.00	Quantity
Additional Options
Part No.		Description	Status	Price	Qty.
DM-31-20/200kg		Vessel Weighing Load Cell Mount	Typical Lead Time: 1 Week	$355.00	Quantity
DM-31-350/500kg		Vessel Weighing Load Cell Mount	Typical Lead Time: 1 Week	$400.00	Quantity
DM-31-S1-20/200kg		Vessel Weighing Load Cell Mount with Stabilization Kit	Typical Lead Time: 1 Week	$482.00	Quantity
DM-31-S1-350/500kg		Vessel Weighing Load Cell Mount with Stabilization Kit	Typical Lead Time: 1 Week	$550.00	Quantity

Dimensions

Capacity (kg)	Dimensions MM (inches)
	d	D	H1	H
20 - 200	8.2 (0.32")	23 (0.91")	20 (0.79")	20 (0.79")
350 - 500	10.3 (0.41")	24 (0.94")	19 (0.75")	20 (0.79")
