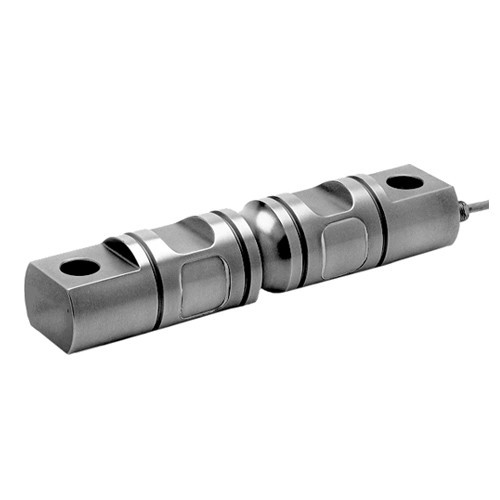

Model RVSC: Double-Ended Shear Beam Load Cell

Load Cell Central's model RVSC is designed for multiple load cell applications such as medium to high capacity bin, silo, and hopper weighing applications. The RVSC, constructed of a nickel plated high alloy tool steel and fully potted to IP65 to protect from water damage, is also available in a stainless steel, hermetically sealed version. When used with our Duramount 1-S3 mounting assembly it is the ideal choice for vessel weighing and batching systems.

Interchange for the 60058, 5103, 9103, 70210

For use with our Duramount 1-S3 weighing assembly.

Capacities

5K, 10K, 20K, 30K, 40K, 50K, 60K, 100K, 150K LB.

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
RVSC-5K	5,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$625.00	Quantity
RVSC-10K	10,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$625.00	Quantity
RVSC-20K	20,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$625.00	Quantity
RVSC-30K	30,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$725.00	Quantity
RVSC-40K	40,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$725.00	Quantity
RVSC-50K	50,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$725.00	Quantity
RVSC-60K	60,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 4-6 Weeks	$725.00	Quantity
RVSC-100K	100,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 8-10 Weeks	$1,450.00	Quantity
RVSC-150K	150,000 lb	Double Ended Shear Beam Load Cell	Typical Lead Time: 8-10 Weeks	$1,450.00	Quantity
Additional Options
Part No.		Description	Status	Price	Qty.
DM-1-S3-5/20K		Vessel Scale Load Cell Mount, Alloy Steel	Out of Stock — Typical Lead Time: 4-6 Weeks	$390.00	Quantity
DM-1-S3-30/75K		Vessel Scale Load Cell Mount, Alloy Steel	Out of Stock — Typical Lead Time: 4-6 Weeks	$910.00	Quantity
DM-1-S3-100/150K		Vessel Scale Load Cell Mount, Alloy Steel	Out of Stock — Typical Lead Time: 4-6 Weeks	$1,235.00	Quantity

Dimensions



Specifications



Capacity		L	L1	L2	D	D1	D2	G	P	R
5K / 10K lb	(mm)	206.3	174.8	133.1	43.2	37.7	16.8	15.8	28.5	12.7
	(inch)	8.12	6.88	5.24	1.70	1.48	0.66	0.62	1.12	0.50
20K	(mm)	206.3	174.8	133.1	49.5	37.9	16.8	21.3	28.5	12.7
	(inch)	8.12	6.88	5.24	1.95	1.49	0.66	0.84	1.12	.050
30K / 40K / 50K / 60K lb	(mm)	260.4	215.9	164.8	76.2	69.4	26.9	25.4	60.2	25.4
	(inch)	10.25	8.50	6.49	3.00	2.73	1.06	1.00	2.37	1.00
100K lb	(mm)	285.8	241.3	190.2	88.9	82.3	26.9	31.0	63.5	38.1
	(inch)	11.25	9.50	7.49	3.50	3.24	1.06	1.22	2.50	1.50
150K lb	(mm)	285.8	241.3	190.2	99.1	92.5	26.9	31.0	71.1	38.1
	(inch)	11.25	9.50	7.49	3.90	3.64	1.06	1.22	2.80	1.50

Specifications

Output:

3 mv/V ± 0.25%

Combined error:

0.025%

Non-Repeatability:

0.02%

Creep (20 minutes):

0.03%

Zero Return (20 minutes):

0.03%

Thermal Sensitivity Shift:

0.0015%/ ºC

Thermal Zero Shift:

0.0026%/ ºC

Comp. Temp. Range:

-10ºC to +40 ºC

Operating Temp. Range:

-20 ºC to +60 ºC

Zero Balance:

± 1%

Input Resistance:

770 Ohms ± 10 Ohms

Output Resistance:

700 Ohms ± 5 Ohms

Standard Cable Length:

50 ft.

Insulation Resistance:

> 5000 Megohms

Full Scale Deflection:

< 0.5 mm

Recommended Excitation:

10 V

Maximum Excitation:

15 V

Safe Overload:

150%

Ultimate Overload:

300%

There are no reviews yet for this product. Write a Review
