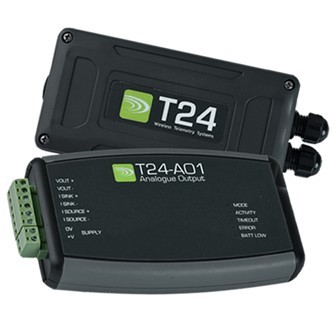

Model T24-AO1 and AO1i Wireless Load Cell Analog Output Module

The T24-AO1 provides a configurable analog output for the range of T24 acquisition modules.

Features

Range of configurable analog outputs including 0-10 V, ± 10 V, ± 5 V, 0-20 mA, and 4-20 mA
Choice of enclosures depending on application
Simple configuration via PC using base station with Telemetry Toolkit software
Integrated antenna
1-year manufacturers warranty

Reviews

There are no reviews yet for this product. Write a Review

Product Pricing

Part No.	Description	Status	Price	Qty.
T24-AO1	Wireless Analog Output Module for T24 Products, Desktop Enclosure, 9 to 32VDC Operational	Out of Stock — Typical Lead Time: 1 Week	$820.00	Quantity
T24-AO1i	Wireless Analog Output Module for T24 Products, Industrial Enclosure, 9 to 32VDC Operational	Out of Stock — Typical Lead Time: 1 Week	$870.00	Quantity
Additional Options
Part No.	Description	Status	Price	Qty.
PSC-24-015	24VDC, .63A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount	Out of Stock — Typical Lead Time: 1 Week	$102.00	Quantity

The T24-AO1i is housed in an IP67 enclosure for industrial installation while the T24-AO1 is designed for desktop mounting with a reduced wireless range of 20 meters.

The required output can be selected from available options within the pre-calibrated voltage and current ranges: 0-10 V, ± 10 V, 0-5 V, ± 5 V, 0-20 mA, and 4-20 mA. The milliamp outputs can be used in a "sink" or source mode.

LEDs in the T24-AO1 indicate the states of the radio link, remote battery life, and remote status. This information is transmitted using open collector outputs.

A digital input enables the resetting of the incoming data value to zero.

Configuration of the T24-AO1 modules is straightforward through the T24 Toolkit and a base station.

t24-ao1 specifications and diagram

Brochures

T24-AO1 and AO1i Brochure
