Model T24-ACM Wireless Transducer Transmitter

The Load Cell Central T24-ACM wireless sensor transmitter takes a millivolt output from standard cabled sensors such as load cells, pressure and torque transducers, temperature sensors, pulse inputs, and potentiometers, or 0-10 V and 0-20 mA (4-20 mA) sensor outputs and converts to a wireless signal ready to be received by any one of our T24 receivers.  Wireless transmission distance is up to 800 meters (2,600 feet, line of sight).

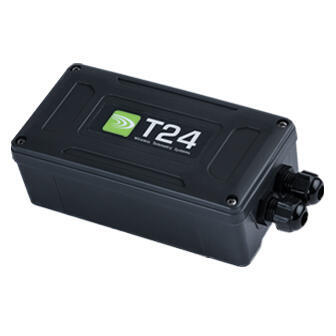

The T24-ACM, supplied in a IP67 rated enclosure (164 X 84 X 57 mm), uses two "D" batteries or can be powered from 5-18VDC.  With the longest battery life of the T24 series wireless transmitters, it is suitable for more permanent installations.

Setup and calibration is done wirelessly via a base station (T24-BSu, T24-BSue, or T24-BSi) connected to a PC or laptop running the provided T24 Toolkit software.  For viewing and logging the data from the T24-ACM units use the T24-LOG100, or T24-Quick View software.

To complete the wireless system, a variety of interfaces are available, from handheld indicators to digital output devices.  One or more of the receivers can be used simultaneously to receive data from a single T24-ACM transmitter. For example, for a tensile testing application: Display data remotely with the handheld T24-HS and simultaneously log the load cells' real-time readings and peak values on a laptop for further analysis using a T24-BSu base station.

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Description	Status	Price	Qty.
T24-ACM-SA	Wireless Load Cell Transmitter	3 available	$710.00	Quantity
T24-ACM-SAf	Fast Wireless Load Cell Transmitter, Up to 2,000Hz	Out of Stock — Typical Lead Time: 1 Week	$950.00	Quantity
T24-ACM-IA	Wireless Current Transmitter, 4-20mA	Out of Stock — Typical Lead Time: 1 Week	$735.00	Quantity
T24-ACM-VA	Wireless Voltage Transmitter, 0-10VDC	Out of Stock — Typical Lead Time: 1 Week	$735.00	Quantity
T24-ACM-TA	Wireless Temperature Transmitter	Out of Stock — Typical Lead Time: 1 Week	$735.00	Quantity
T24-ACM-PA	Wireless Pulse Transmitter	Out of Stock — Typical Lead Time: 1 Week	$735.00	Quantity
T24-ACM-RA	Wireless Potentiometer Transmitter	Out of Stock — Typical Lead Time: 1 Week	$735.00	Quantity
Additional Options
Part No.	Description	Status	Price	Qty.
PSC-12-015	12VDC, 1.25A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount	3 available	$102.00	Quantity



Available T24 Transmitters
T24-ACMm     3VDC operational or use T24-BB1 battery pack     Range up to 500 meters
T24-ACMi       Powered by two "AA" batteries                                Range up to 800 meters
T24-ACM        Powered by two "D" batteries                                  Range up to 800 meters

Brochures

• T24-ACM Comparison Brochure
• • T24 Wireless Manual

Downloads

• T24 Toolkit Software v2.4.8 3.6mb
• T24 100-Channel Logging Software v4.10.0 12mb
• T24 Quick View & Logging Software v2.0.0 2.0mb
