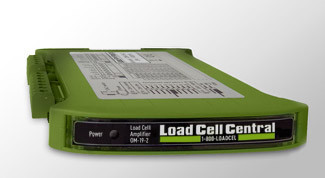

Model OM-19 Load Cell Amplifier, ±10 VDC & 4-20mA Outputs

Load Cell Central’s OM-19 load cell amplifier is the perfect solution for OEM applications that do not require a load cell display.  24VDC powered, this load cell amplifier is often paired with PLC systems, and provides an amplified load cell signal to 0-10V, +/-10VDC, or 4-20mA output.  The OM-19 can power up to four 350 ohm strain gage load cells.  The OM-19 load cell amplifier also features a shunt calibration switch, sense connections, excitation jumpers, and variable output rates from the factory.  The OM-19 signal conditioner comes in several models, including OM-19-1 which is an OEM bare board version, OM-19-2 is DIN rail mountable, or OM-19-3 the fully enclosed version.  Each version is also available with two optional configurable setpoints.

Features

• The OM-19 load cell amplifier is able to run up to four strain gage load cells (350 Ohm)
• 4 or 6 wire load cell
• Voltage output (±10 VDC or 0-10 VDC) and current ouput (4-20 mA)
• Shunt calibration signal
• 2 variable setpoints optional on model OM-192S

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Description	Status	Price	Qty.
OM-19-2	Din-Rail Mount Load Cell Amplifier, 24VDC Operational	Out of Stock — Typical Lead Time: 1 Week	$395.00	Quantity
OM-19-1	Uncased Load Cell Amplifier, 24VDC Operational (PCB Only, No Enclosure)	2 available	$295.00	Quantity
OM-19-3	IP65 Enclosure with Load Cell Amplifier, 24VDC Operational	Out of Stock — Typical Lead Time: 2 Weeks	$530.00	Quantity
OM-192S-2	Din-Rail Mount Load Cell Amplifier with Dual Relay Output Option	Out of Stock — Typical Lead Time: 2 Weeks	$570.00	Quantity
OM-192S-1	Uncased Load Cell Amplifier with Dual Relay Output Option, (PCB Only, No Enclosure)	Out of Stock — Typical Lead Time: 2 Weeks	$550.00	Quantity
Additional Options
Part No.	Description	Status	Price	Qty.
PSC-24-015	24VDC, .63A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount	Out of Stock — Typical Lead Time: 1 Week	$102.00	Quantity



See the video below for a brief overview and calibration procedure of the OM-19 load cell amplifier.

Brochures

• OM-19 Brochure 278kb
