422 Load Cell Scale Display

Load Cell Scale Display

Features

  • 1" tall 6-digit LED display
  • Selectable 5-point calibration for improved accuracy
  • 20-bit A/D with 60 samples/second conversion rate
  • Direct to PC/PLC output via RS232, RS485, or USB by using an adaptor
  • Powers up to 12 x 350 Ω or 24 x 700 Ω load cells
  • Digital port for relay control and remote operation
  • Easy setup
  • Toll Free Technical Support

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.DescriptionStatusPriceQty.
422Simple 5-Key Load Cell Scale Display, Powder Coated Steel Enclosure, NTEP ApprovedCall for Lead Time$875.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
OP400A/OAnalog Output Option, 0-5VDC, or 4-20mACall for Lead Time$240.00
increase
decrease
OP400A/O-R4Analog Output Option, 0-10VDC, or 4-20mACall for Lead Time$240.00
increase
decrease
OP400Q/DQuck Disconnect for the Scale Connection, Includes Mating ConnectorCall for Lead Time$135.00
increase
decrease
OP400T/DTime & Date OptionCall for Lead Time$115.00
increase
decrease
8501External Relay Module in NEMA 4 Enclosure, 4-Channel, Relays not Included3 available$335.00
increase
decrease

add to cart

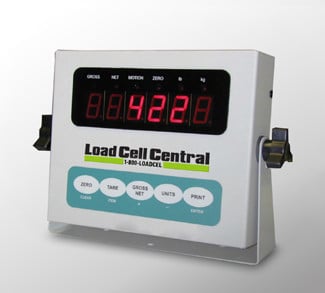

Load Cell Central's 422 has a rugged powder-coated steel enclosure (model 410 has a stainless steel enclosure).  It is the only digital weight meter in its class that is fully programmable in an easy and flexible macro language called Scale Basic™.  In addition to the built-in modes of operation, Scale Basic allows you to customize the operation of the 422 to meet your application requirements.  The Scale Basic language provides various commands and functions that include:  Math operations, I/O control, setpoints, timers, data entry, ID storage, message display, and program sequence control among others.  The 422 can be programmed through the keyboard or a PC using the optional software that greatly facilitates setup and programming. For options for remote displays,  see weight scale remote displays

Brochures

Pre-Programmed Modes

  • MODE 0 - Normal
    Basic gross, tare and net weighing.
  • MODE 1 - Keyboard Tare
    Same as Mode 0 but tare weight is keyboard entered.
  • MODE 2 - Print Weight and Total
    Print multiple gross or net weights and keep a running total for the job, lot, etc. Print accumulated gross, tare and net totals at the end.
  • MODE 3 - Print Weight With Subtotal and Total
    Same as Mode 2 but subtotals can be printed.
  • MODE 4 - Multi-Container/Axle Weighing
    Push the PRINT button to sequentially number and print a series of weights.  Push the TOTAL button to print and clear the total.
  • MODE 5 - Auto Weigh and Print (Auto Axle Weigh)
    Same as Mode 4 but printing is automatic when weights are placed
    on the scale.  Provides traffic light control and trip level configuration.
  • MODE 6 - Auto Axle Weigh (Long Scales)
    Same as Mode 5 but previous axles are auto tared.
  • MODE 7 - Peak Hold Mode
    Display or print the "Peak" value for the gross or net weight.
  • MODE 8 - Over/Under Checkweigh
    Provides 3 TTL outputs and 2 setpoints to indicate "Over", "Under" and "Between" weight conditions.  Outputs can activate lights or alarms.
  • MODE 9 - Bulkweigh
    Provides setpoint entry and relay output to control the fill process.  Remote start/stop operation with configurable 'Scale Empty' and 'Draft' weights.  Use for multiple drafts with subtotal and total printing.

Options

  • Quick-Disconnect Kit
    Amphenol type connector on the back of the indicator includes a mating connector
  • 12-28VDC Operational
    Low voltage power supply
  • Analog Output Module
    Fully isolated 0-10VDC or 4-20mA; 16-bit resolution
  • Relay Box
    4-channel external relay box model 8501
  • Relay Modules
    Input/output solid-state (AC/DC) relays
  • Clock Module
    Time and Date Clock
  • High speed (HS)
    100 samples/second conversion rate; high-speed process control applications
  • EZ-LINK™
    PC software; facilitates configuration and Scale Basic™ programming
  • IS Barriers
    Hazardous location intrinsic safety barriers

422 specification sheet



There are no reviews yet for this product. Write a Review

Product Bulletins
